RHD20AL ,RHD45A Slide Blocks

Model Number : RHD20AL ,RHD45A

MOQ : 1

Price : FOB

Packaging Details : Carton Box

Delivery Time : within one day

Payment Terms : T/T In advance

Supply Ability : 5000PCS

Contact Now

Specifications

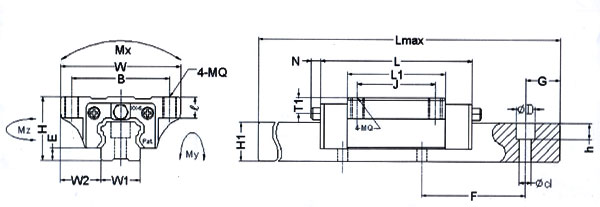

Part NO	size of combination				slide housing size							slide rail size
	H	W	W2	E	L	BÃ—J	MQÃ—l*/	L1	oil hole	T1	N	W1	H1	F	dÃ—DÃ—h
RHD15A	24	47	16	4.6	66	38Ã—30	M5Ã—8	40	Ð¤3	4.3	5	15	14	60	4.5Ã—7.5Ã—5.3
RHD20A	30	63	21.5	5	77.8	53Ã—40	M6Ã—9	48.8	M6Ã—1	5	6.5	20	18	60	6Ã—9.5Ã—8.5
RHD20AL					92.4			63.4
RHD25A	36	70	23.5	7	88	57Ã—45	M8Ã—12	57	M6Ã—1	5	6.5	23	22	60	7Ã—11Ã—9
RHD25AL					110.1			79.1
RHD30A	42	90	31	9	109	72Ã—52	M10Ã—12	72	M6Ã—1	7	6.5	28	26	80	9Ã—14Ã—12
RHD30AL					131.3			94.3
RHD35A	48	100	33	9.5	109	82Ã—62	M10Ã—13	80	M6Ã—1	8	6.5	34	29	80	9Ã—14Ã—12
RHD35AL					134.8			105.8
RHD45A	60 (62)	120	37.5	14	138.2	100Ã—80	M12Ã—15	105	M8Ã—1	10	13	45	38	105 (100)	14Ã—20Ã—17
RHD45AL					163			129.8
RHD55A	70	140	43.5	15	170	116Ã—95	M14Ã—20	121	M8Ã—1	11	13	53	44	120	16Ã—23Ã—20
RHD55AL					205.1			156.1

Part NO

Reference ï¼ˆmmï¼‰

Basic Loading(kgf)

Allow the first moment (kgfxm)

weight

Lmax

Dynamicï¼ˆcï¼‰

staticï¼ˆcoï¼‰

slide Blockskg

slide railkgf/m

RHD15A

4000

850

1650

0.19

1.4

RHD20A

4000

1450

2560

0.4

2.6

RHD20AL

1900

3330

28.6

23.4

0.52

RHD25A

4000

2140

4000

0.57

3.6

RHD25AL

2996

5600

50.4

44.8

43.4

0.72

RHD30A

4000

2980

5490

1.1

5.2

RHD30AL

3900

7190

78.5

1.4

RHD35A

4000

3960

7010

1.6

Buy cheap RHD20AL ,RHD45A Slide Blocks product

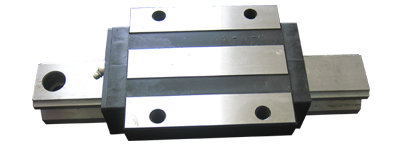

RHD20AL ,RHD45A Slide Blocks Images
